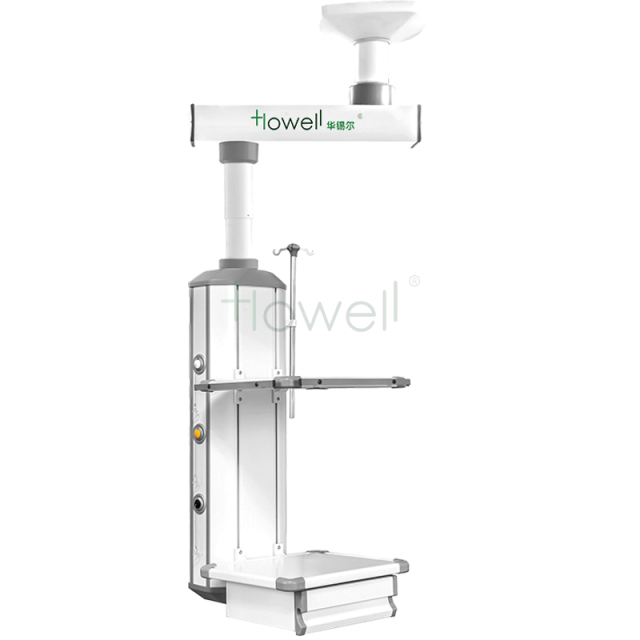

Single Arm Electric Surgical Pendant HE-K-10
The single-arm lifting pendant is a modern operating room auxiliary equipment commonly utilized in medical rescue situations. It features a compact and well-designed structure, enabling it to lift up to 400 mm and rotate within a range of 340 degrees. When lowered, medical staff can easily handle it by lifting their hand without any hindrance to their work. The device allows for effortless movement and locking of the tower body position as per the requirements of medical personnel. The platform function box concentrates essential functions such as medical gas supply, suction, vacuum suction, strong and weak electricity, and network output terminal. Additionally, the platform has the capability to carry a certain weight of medical instruments, making it an ideal workstation tower for healthcare professionals in need of power supply and instrument support.
(The selection of the platform, drawer, gas interface\power socket, network interface\telephone interface can be customized to meet specific customer preferences.)
1. The horizontal rotation angle ranges from O to 340 degrees.
2. The maximum weight that can be supported by the terminal box is 80 kg.
3. The standard air supply includes 2 oxygen, 2 suction, and 1 air outlets.
4. There are a total of 8 power sockets with three holes each in the standard power supply.
5. The equipment trays provided amount to a total of 26.
6. A set of infusion poles is included in the equipment package.
7. The lifting stroke has a range of 400 mm.
